AHD 1080P Digital Wireless Video Transceiver test5
- 2.4GHz Digital Wireless Video Transmitter and Receiver box
- Long distance with over 1500m using 3dBi Ant
- 1080P/720P high resolution
- No delay,no interference
- IP69 waterproof Tx/Rx metal casing

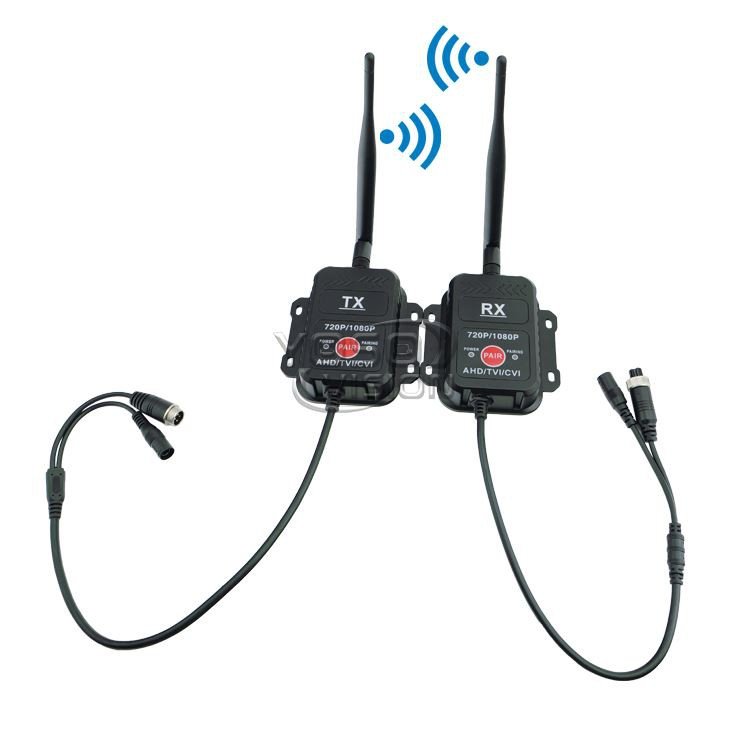

Outdoor IP69 wireless pocket video transmitter and receiver box 12-36V universal for any wired aftermarket AHD car camera and lcd monitor system.With favourable costs but high performance,built-in digital wireless transmitter and receiver box,to connect with wired rear view camera and monitor kit to convert the system to wireless signal transmission.Without 10M or 20M extension cable any more,easy for installation.
| Item No.: | YS-WTR01 |
| Smart Modulation | 16QAM,QPSK,BPSK |
| Distance | Over 1500m(3dBi Ant) |
| Resolution | 1080P/720P |
| Short Latency | 90~120ms |
| Operating Voltage | 12-36V |
| Current Consumption: | 200 mA Max |
| Power Consumption: | 2.4 Watt Max |
| RF Output Power: | 20dBm |
| TV system: | NTSC or PAL |
| Video Output: | 1Vp-p, 75 Ω |
| Booting Time: | Under 2s |
| Video Bit Rate: | 1.5~6MBPS |
| Video codec | H.264 |
| Shock rating: | 100G |
| Vibration rating: | 10G |
| Operating Temperature: | -40℃~+85℃ |
| Storage Temperature: | 50℃~+90℃ |
| Item No.: | YS-WTR01 |
| Smart Modulation | 16QAM,QPSK,BPSK |
| Distance | Over 1500m(3dBi Ant) |
| Resolution | 1080P/720P |
| Short Latency | 90~120ms |
| Operating Voltage | 12-36V |
| Current Consumption: | 200 mA Max |
| Power Consumption: | 2.4 Watt Max |
| RF Output Power: | 20dBm |
| TV system: | NTSC or PAL |
| Video Output: | 1Vp-p, 75 Ω |
| Booting Time: | Under 2s |
| Video Bit Rate: | 1.5~6MBPS |
| Video codec | H.264 |
| Shock rating: | 100G |
| Vibration rating: | 10G |
| Operating Temperature: | -40℃~+85℃ |
| Storage Temperature: | 50℃~+90℃ |
Outdoor IP69 wireless pocket video transmitter and receiver box 12-36V universal for any wired aftermarket AHD car camera and lcd monitor system.With favourable costs but high performance,built-in digital wireless transmitter and receiver box,to connect with wired rear view camera and monitor kit to convert the system to wireless signal transmission.Without 10M or 20M extension cable any more,easy for installation.
