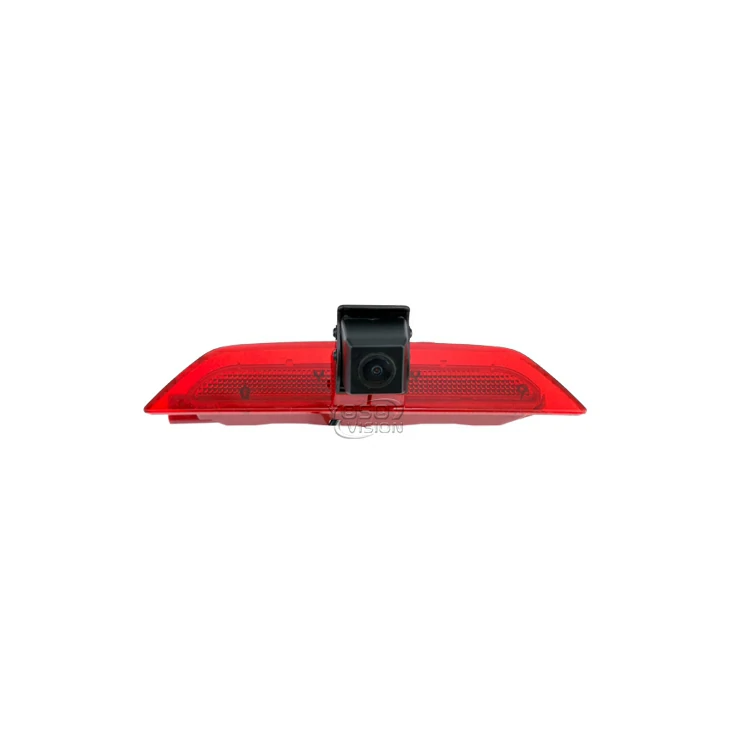

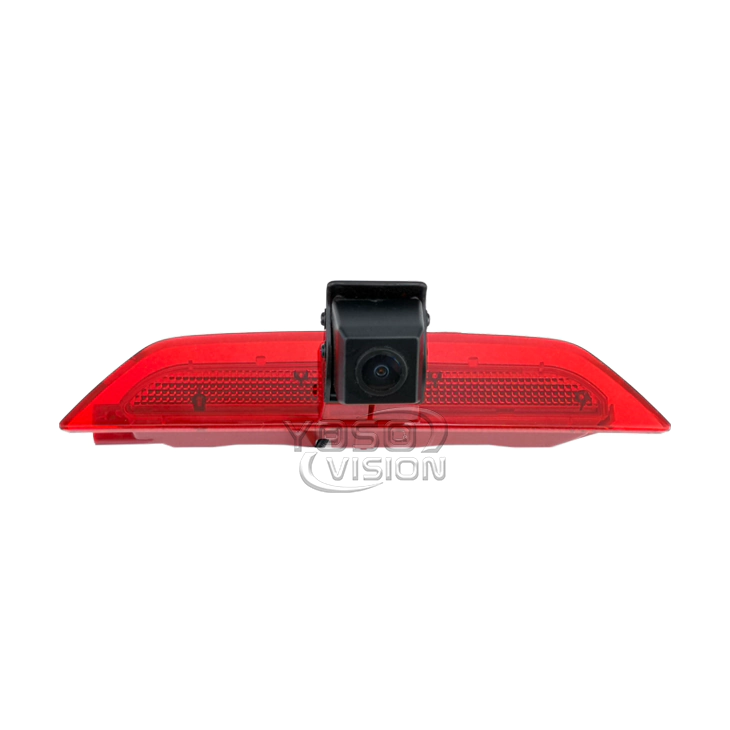

1080P Brake Light Reversing Camera for Volkswagen Caddy 2020
- AHD 1080P/720P/CVBS signal for optional.
- 130 degree horizontal wide view angle.
- Camera module’s view angle can be adjusted freely.
- 1080P/CVBS or 720P/CVBS or GuideLines ON/OFF switching wire loops can be customized.
- IP69 waterproof grade.

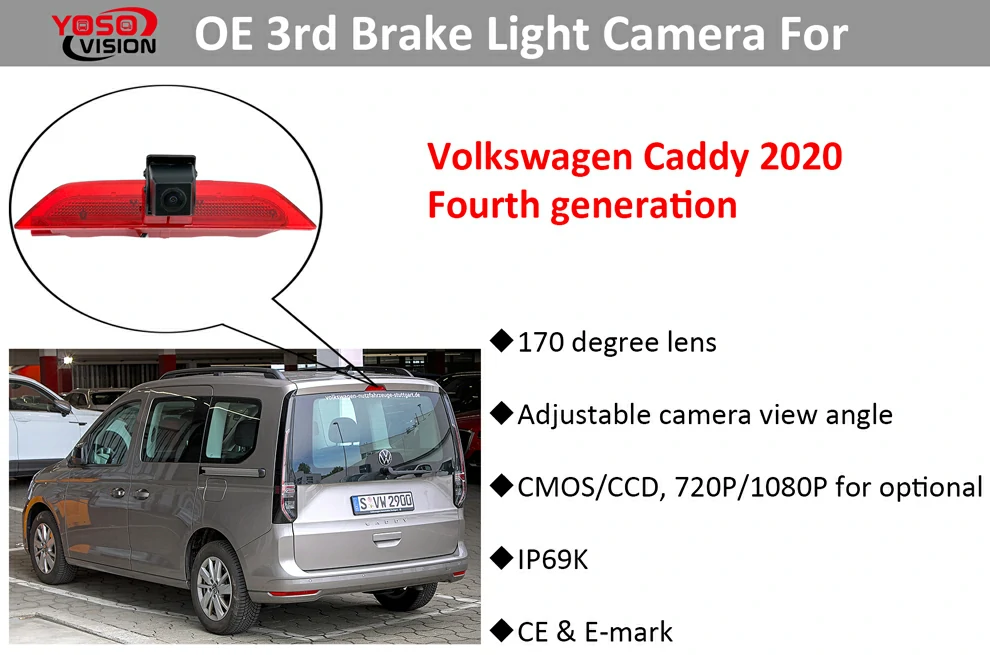

This 3rd brake light reversing camera is used for Volkswagen Caddy 2020 (Fourth generation) OE brake light replacement. The reversing camera with a 130 degree horizontal lens is in charge of reversing view, camera module’s view angle can be adjusted freely. AHD 1080P/720P/CVBS signal for optional, 1080P/CVBS or 720P/CVBS or GuideLines ON/OFF or PAL/NTSC system switching wire loops can be customized.
| Item No.: | YS-BLC-VC2 |
| Image Sensor | 1/2.7 CMOS Sensor AHD 1080P/720P |
| Effective Pixels | 1080P: 1920(H) X 1080(V) 720P: 1280(H) X 720(V) |
| System | PAL/NTSC system, default with mirror image. |
| Synchronization system | internal synchronization |
| Vertical sync frequency | 60Hz |
| Minimum illumination | 0.01 Lux@(F1.2,AGC ON) |
| Video output | composite video signal, 1.0vp-p, 75Ω |
| Shutter | Auto |
| SNR | > 70dB |
| White balance | Auto |
| Effective Angle of Lens | 130° horizontal |
| Waterproof Grade | IP69 |
| Electric current | 100mA±10% |
| Operating Voltage | DC 12V±10% |
| Operating Temperature: | -30℃~+70℃ |
| Storage Temperature: | -40℃~+85℃ |
◆ AHD 1080P/720P/CVBS signal for optional.
◆ Camera module’s view angle can be adjusted freely.
◆ IP69 waterproof grade.
◆ 1 Year Free Warranty.
◆ CE & E-mark certificated.
This high level 3rd brake light reversing camera is compatible with Volkswagen Caddy 2020 (Fourth generation) OE brake light replacement.
